 My SSPA Power Supply designed by W6PQL.

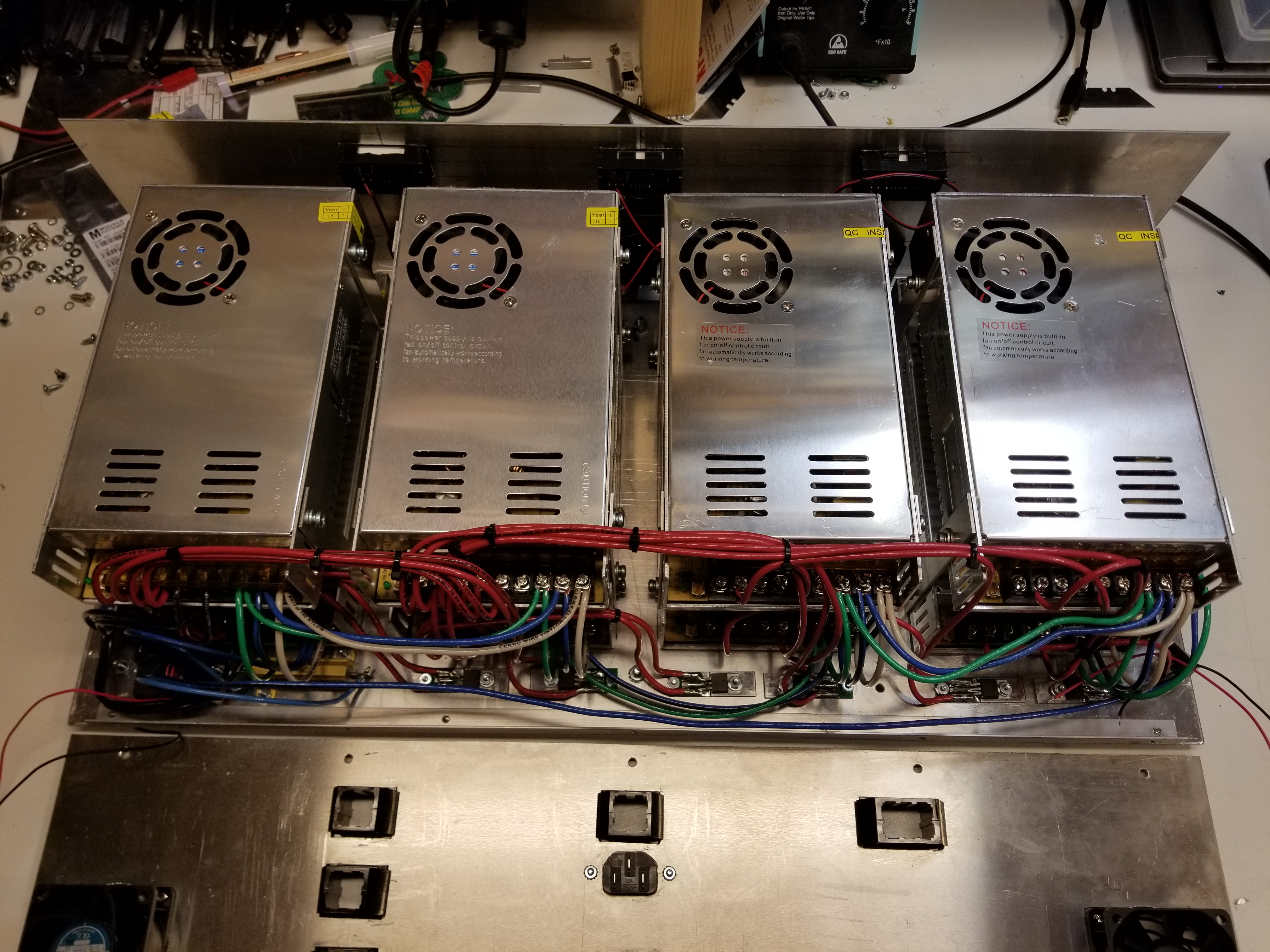

This is a 50V, 24V and 13.8V Power supply that will handle 60 Amps total current using cheap LED power supplies.  This is actually a fairly simple design.  The hardest part of this project was all the wiring!! lots of it!

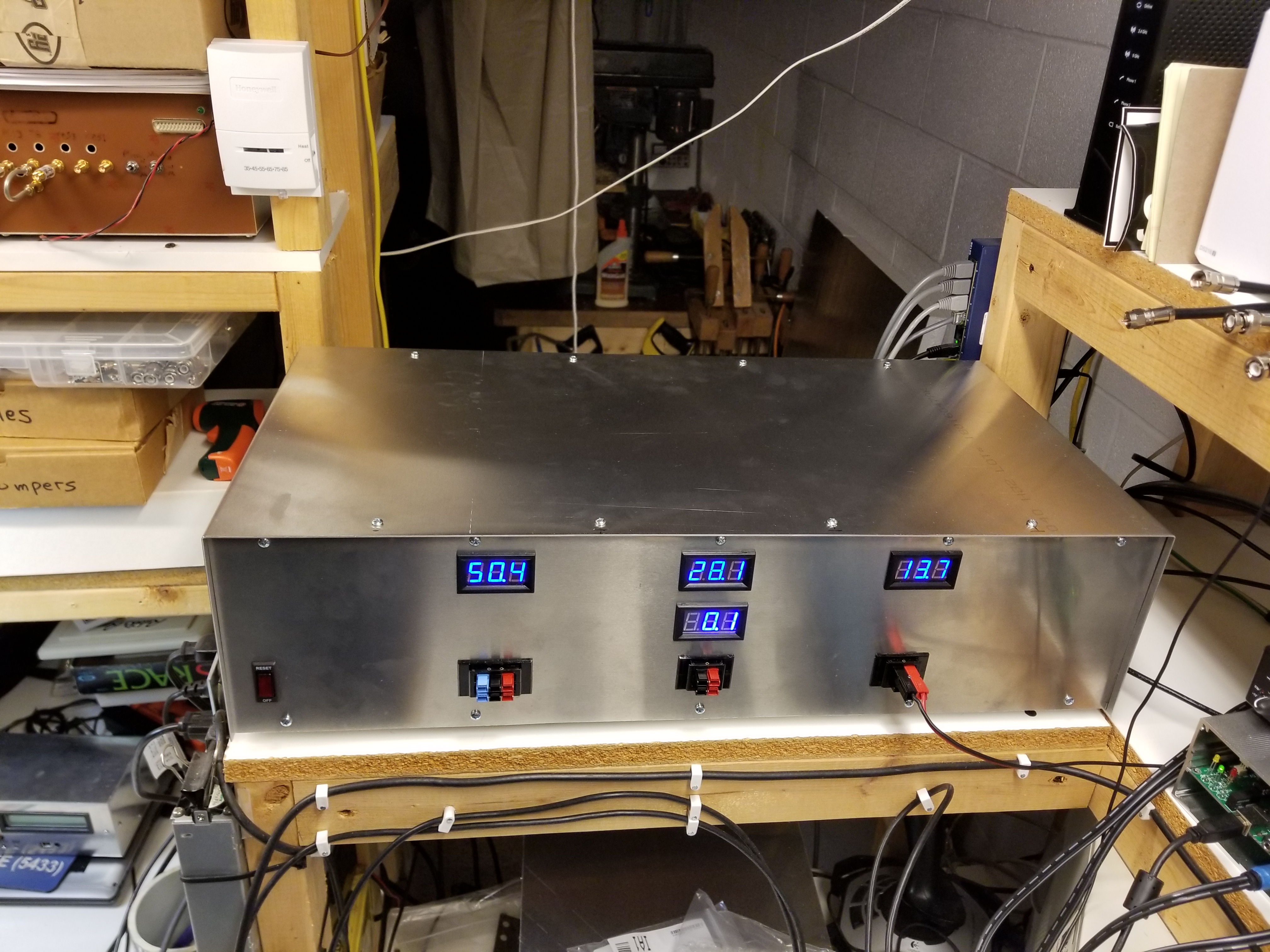

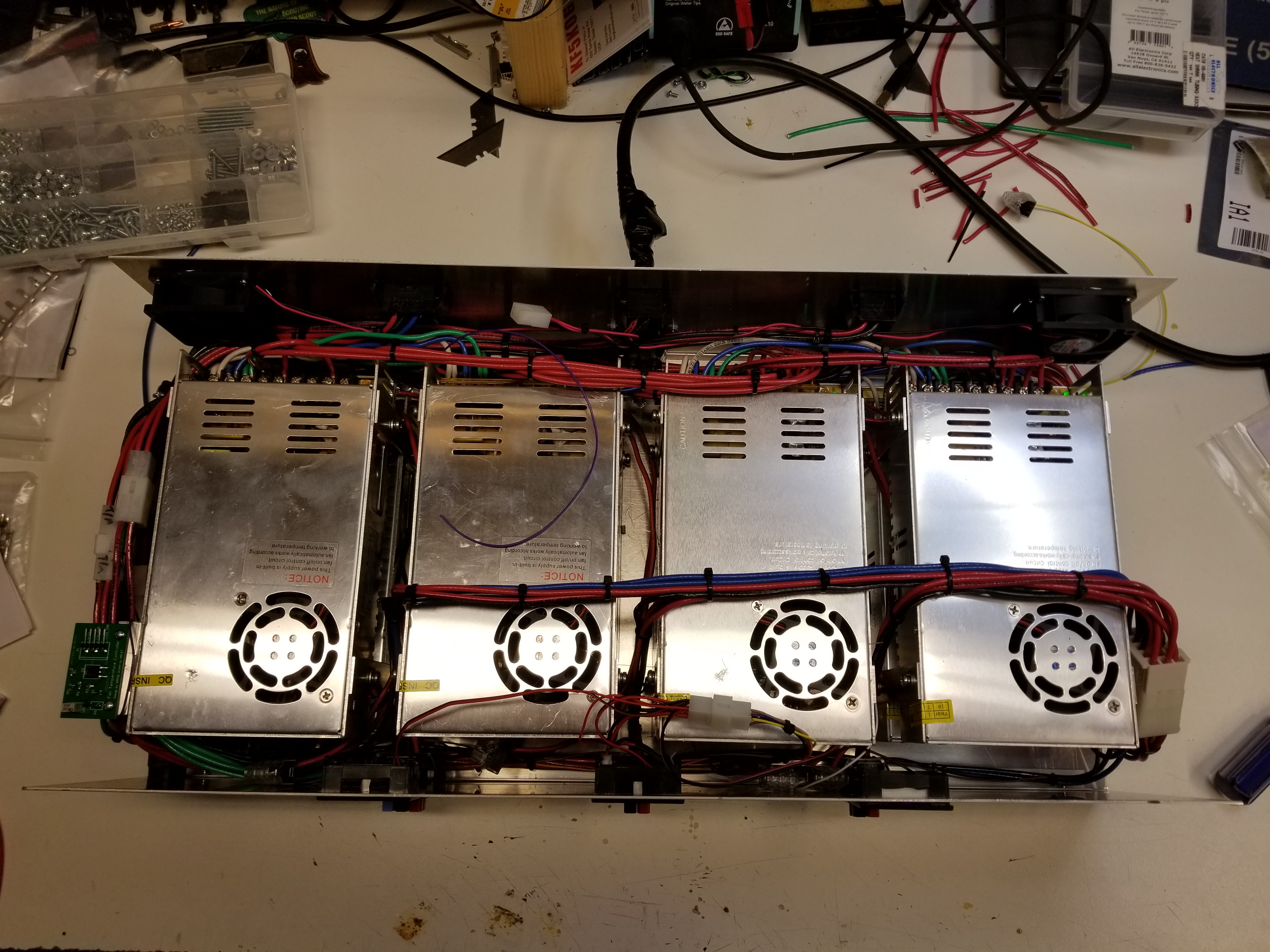

The front has power jacks for easy connection to exquioment I might be testing on the bench.  The back side has a bunch more jacks for a more perminate connection to equipment.  Each power supply has its own fan and to keep the enclosure cool there are 2 enclosure fans, one blowing in and the other blowing out.  The enclosure fans are tempurature controlled so they aren't always on.   Works great!  Thanks to Jim for the idea
